Foot sensor device for electric tailgae lift system

Item No.: KMFS000

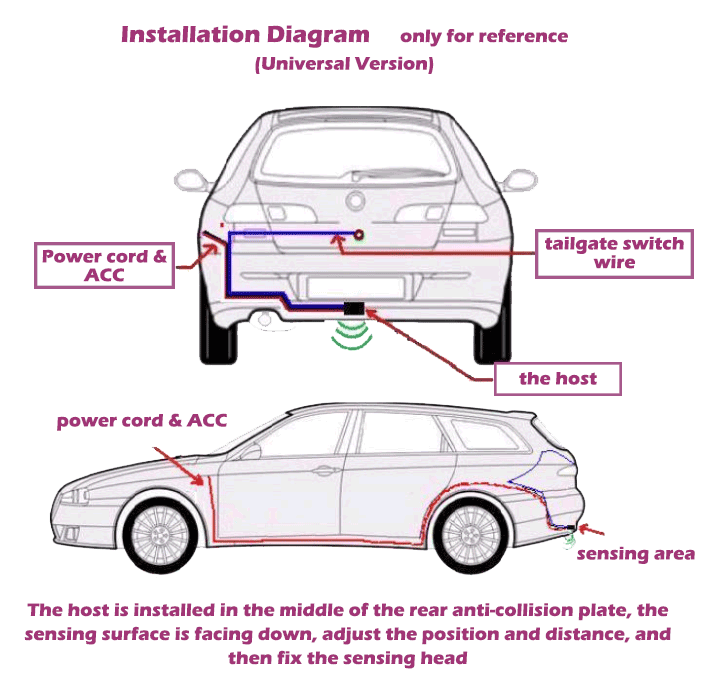

By installing a sensor at the rear of the vehicle and connecting it to the signal wire of the original car’s rear trunk, when the car is unlocked and the sensor senses that someone performs an unlocking action within a certain range, the tailgate will aut
Description Special Car Model
Foot sensor device for electric tailgae lift system
(Also suitable for OEM electric tailgate lift system)

What is foot sensor (kick activated) device?
By installing a sensor at the rear of the vehicle and connecting it to the signal wire of the original car’s rear trunk, when the car is unlocked and the sensor senses that someone performs an unlocking action within a certain range, it will automatically open or close the rear door.

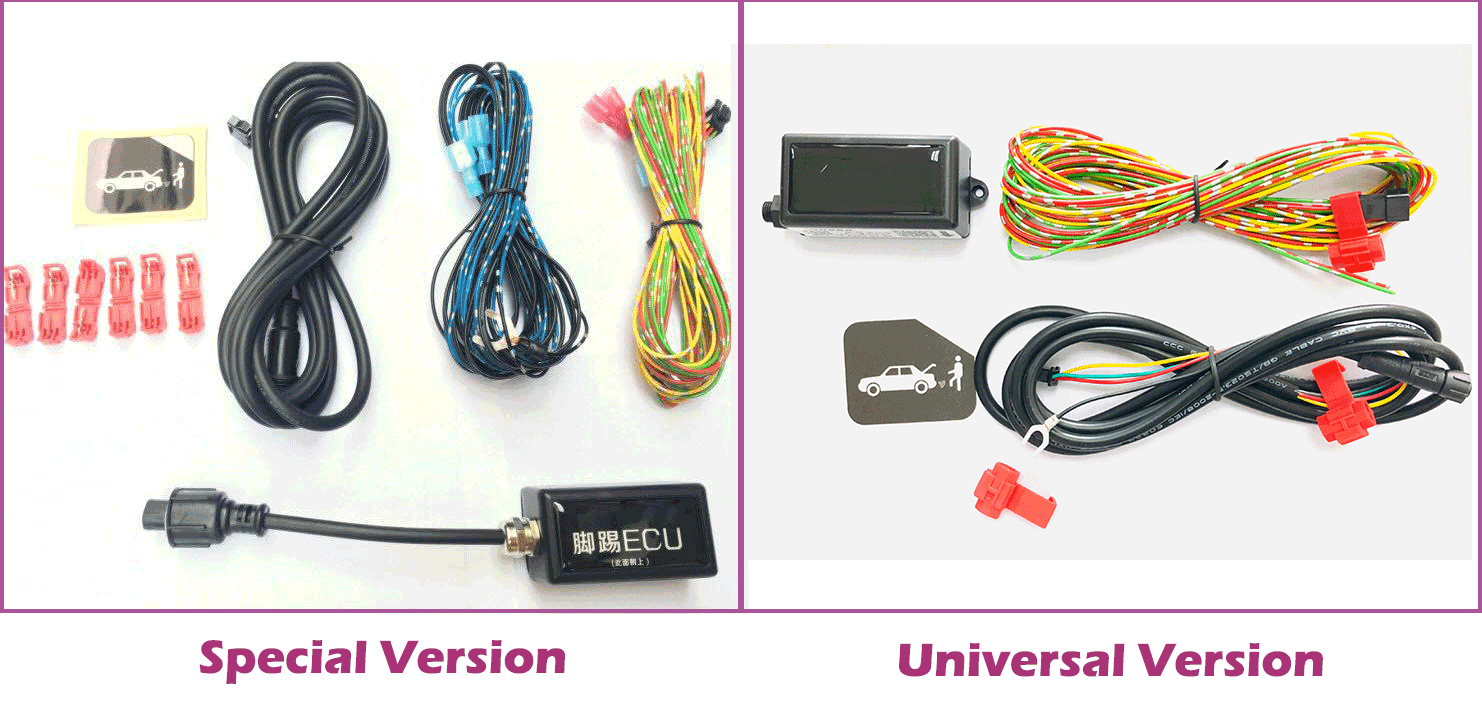

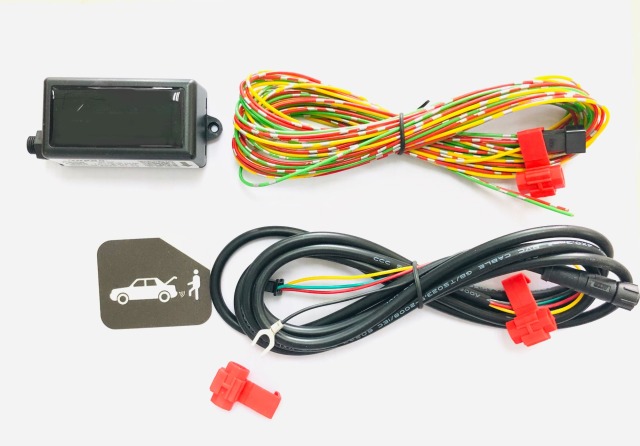

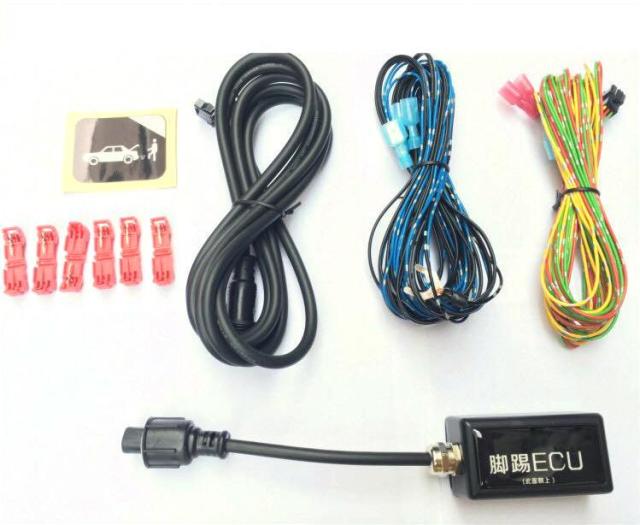

Accessory List:
Accessory Name Description
Package Size: 22.5*15.5cm
Weight: 0.36kg
Wire harness A: 1.8m
Wire harness B: 4m
Tips: 1
Wire clamp: 1
Fuse: 2

Parameters:
Part Parameter Description
ECU Size: 66*36*26mm
Weight: 0.047kg
Operating Voltage Range: DC8 ~ 20V
Working Temperature Range: -30℃ ~ 75℃
Working Current: ≤14mA
Stand-by Current: ≤7.28mA
Power Reverse Connection Protection: YES
Short Circuit Protection: YES
Fuse Holder: 3A
Over Temperature Protection: 95℃
Waterproof Level: IP67
Sensor Detection Method: Millimeter Wave
Responding Speed: 100uS
Sensing Distance: 5-15cm
ACC System Detect ACC Power Consumption: Increase 2.28mA
Detection of ACC Method: The same chip detects status
ACC Detection Process: When ACC detects high power frequency, the host does not output; when there is no high power frequency, the host outputs.
- Warranty: 1 year

Precautions:
enlightened1. The kick sensor systemn needs to be used in conjunction with an electric tailgate system
enlightened2. It the tailgate has no automatic lifting function, the kick sensor itself connot make the tailgate automatically lift switch.
enlightened3. Please install the electric tailgate first and then use it with the kick sensor device. If the car has OEM electric tailgate system, you can use our special foot sensor device.
enlightened4. If the electric tailgate is not installed on the car, the kick sensor device cannot be used alone.
enlightened5. Please consult our staff for the adaptability of different models. Some special car models need to use special foot sensor device version.



Technical Supprt & Description:
heart1. Directional capacitive induction (only one sense is facing up, the other sides are shielded)
heart2. Standard 6-line version: Solve the problem that the tailgate of some car models can only be opened and cannot be closed.
heart3. Built-in antenna for easy installation.
heart4. The sensing distance is up to 20cm, which solves the problem of the relatively high tail of the SUV.
heart5. Standby current is less than 2 mA: meet the requirements of OEM.
heart6. Using the latest human behavior algorithms: anti-cat, anti-dog, anti-flush.



FAQ:
1. How about your delivery time?
- The product is in stock. When we have received the payment, we can ship the goods out.
2. When a cat or puppy pass by, will it cause the tailgate open?
- No. We have the function of preventing accidental opening. Only kicking can open the tailgate.
3. Is this product waterproof?
- It has a certain waterproof function, but we recomment installing the rear bumper at the bottom of the car to aviod soaking in water.
4. If my car has OEM electric tailgate, can I install this products?
- Sure. You can install our special foot sensor device.
5. If the mechanic malfunction, we can still open the trunk manually?
- Yes. It does not affect other functions of the tailgate.

enlightenedFor these car modes, whether it is OEM electric tailgate or aftermarket electric tailgate, it need to use special electric tailgate

No. Car Model
1 Mercedes Benz
2 Jeep Grand Cherokee
3 Jeep Cherokee
4 Jeep Compass
5 Volvo XC60
6 Volvo XC90
7 Toyota Alphard
8 Toyota Highlander
9 Lexus RX270
10 Ford Explorer
11 Mitsubishi Outlander
12 Range Rover Vogue
13 Volkswagen Series
14 Chang'an CS95
15 Nissan Patrol
16 Nissan Tenna
17 Honda Crosstour
